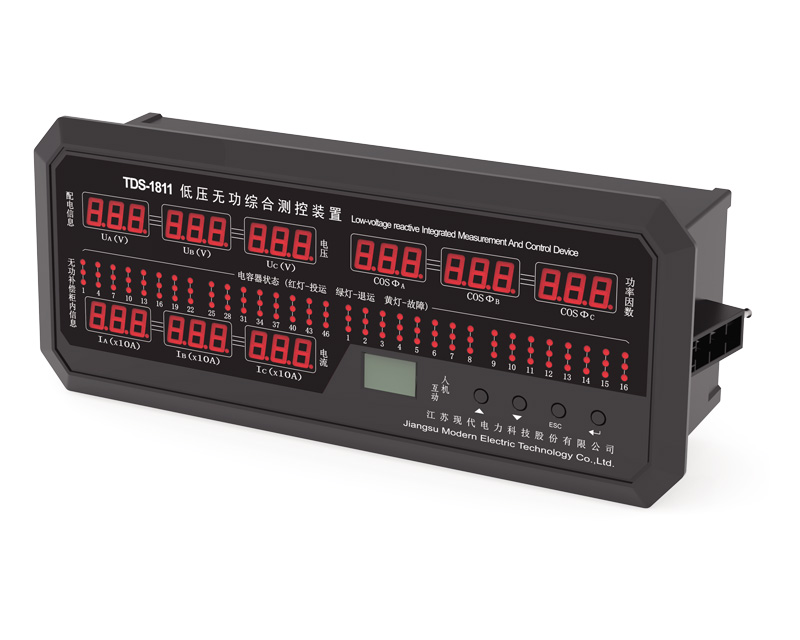

TDS-1811 Low-voltage Distribution Comprehensive Measure-control Device
2018-12-20
Product Application TDS-1811 Low-voltage Reactive Power Comprehensive Measure-control Device has a lot of functions, for instance, distribution voltage, current measurement, and signal, protection, telecontrol as well as reactive power automatic compensation & control etc. The product can be applied matching with our various TDS series intelligent integrated low-voltage reactive power compensation module (device), composing low-voltage reactive power automatic compensation device.
Main Features of the Product (1) Embedded installation structure. (2) Display each distribution parameter and parameter in the cabinet as well as operation conditions of the capacitor through LED nixie tube and indicator lights, therefore, operation conditions are visual and transparent. (3) A small area of dot-matrix LCD is used for application setting, with easier setup. (4) With a function of RS485 upstream communication, it can communicate with the backstage supporter, constituting system work. (5) Hybrid compensation of three phase and split phase is available, which can realize three phase compensating 48 groups capacitors at most or fulfill split phase compensating 32 groups of capacitors or accomplish a mix of three phase and split phase jointly compensating 32 groups of capacitors in total. |
